Building Envelope Waterproofing and Leak Diagnostics in Chicago, IL

We offer building envelope waterproofing and leak diagnostics in Chicago, IL to identify where water is entering your commercial property. Using visual inspection and investigative tools, we trace leaks at roofs, walls, windows, and foundations, then recommend targeted waterproofing solutions to stop ongoing damage and mold risks.

Clarity Mold Remediation Chicago provides professional commercial leak detection throughout Chicago, IL, Illinois and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call (312) 626-7607 or request your free quote.

Building Envelope Problems We See Every Week in Chicago

In Chicago, commercial leak detection is not just about finding a wet ceiling tile. The real issue is how water is moving through your building envelope, which includes the roof, exterior walls, windows, doors, and foundation transitions. At Clarity Mold Remediation Chicago, most of the calls we get start with something simple: a stain in an office ceiling, musty odors in a stairwell, or bubbling paint on an exterior wall facing the alley.

Local buildings see heavy stress because of lake-effect weather, freeze-thaw cycles, and wind-driven rain off Lake Michigan. We routinely find leaks at parapet walls, around poorly sealed window frames, at roof-to-wall transitions, and through aging brick or limestone that was never properly repointed. Many properties in Chicago also have older masonry with worn mortar joints and hidden cracks that pull in water without any obvious surface opening.

What surprises many owners and facility managers is that the visible leak is usually 10 to 30 feet from where the water is actually entering. Water can travel along steel beams, under roofing membranes, or through insulation before it finally shows up in the occupied space. That is why commercial leak detection has to focus on the whole building envelope instead of just the spot where you see a drip or stain.

Another Chicago-specific issue is previous patch jobs. Quick fixes with hardware store caulk, roof cement, or spray foam may have stopped a past leak, but they often trap moisture in the wall or roof system. We see this a lot on older flat roofs in neighborhoods like West Loop, Pilsen, and along the industrial corridors. When we open those assemblies, we often find saturated insulation, soft decking, and mold brewing inside cavity spaces.

Clarity Mold Remediation Chicago approaches every building as a system. Before we talk solutions, we focus on understanding how your building components connect and where water has real opportunities to get in. That approach lets us avoid unnecessary tear-offs and aim the repair budget where it actually solves the problem.

How Commercial Leak Detection Actually Works

Effective commercial leak detection is a methodical process, not guesswork with a caulk gun. When Clarity Mold Remediation Chicago investigates a building envelope leak, we typically follow a structured sequence so we do not miss the real source.

First, we perform a detailed visual and infrared survey. Visual inspection covers roof membranes, flashings, coping caps, sealant joints, window perimeters, masonry joints, and any previous patch work. At the same time, we use infrared thermography to scan roof surfaces and wall sections. Cooler or warmer temperature patterns often reveal moisture pockets behind surfaces long before they show visible damage.

Second, we use moisture meters and probes. Non-invasive meters help us map damp areas on drywall, plaster, and some roofing finishes, while pin-type meters and deep probes allow us to test inside wall cavities, under roof membranes, and at suspect joints. If your building has multiple tenant spaces, we record readings by location so you can see exactly how far the moisture extends.

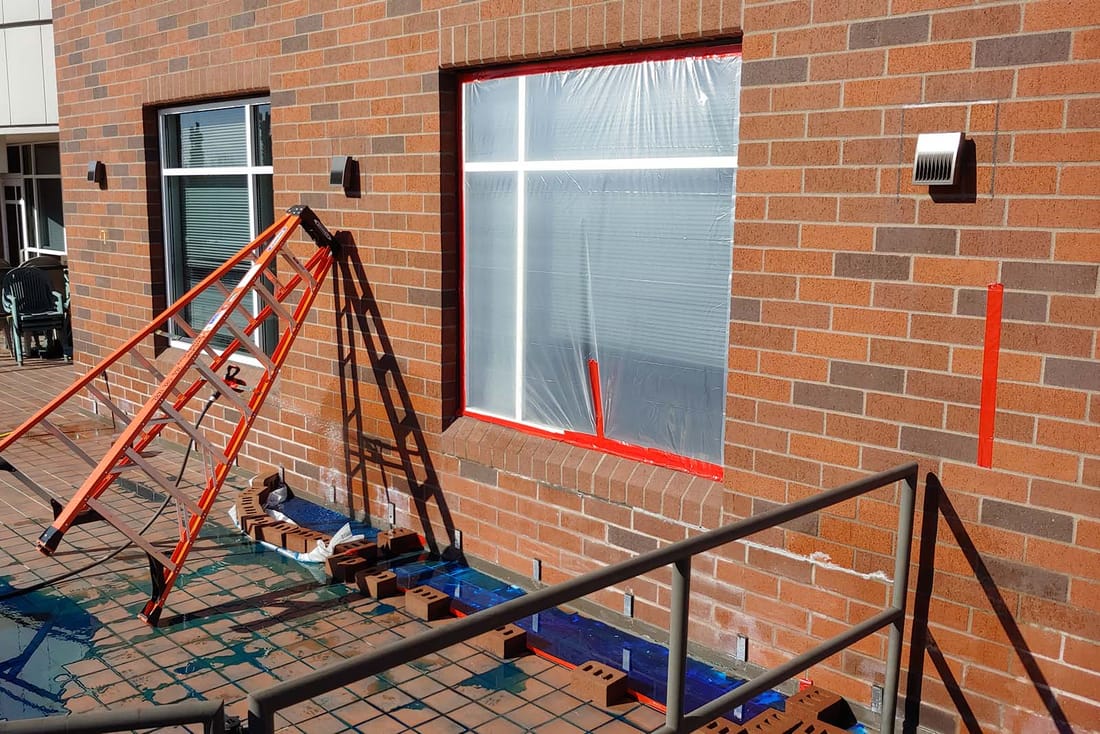

Third, when needed, we perform controlled water testing. This is targeted, not just spraying a hose at the building. We work with the property team to isolate sections, then apply water to specific details in a sequence: first around flashing, then window head joints, then sill joints, then wall transitions. While we apply water, we monitor inside with moisture meters and sometimes open small inspection holes so we can watch how water behaves.

Fourth, for complex cases, we can coordinate with independent envelope consultants or use smoke testing and tracer dyes to follow leak paths. For example, on large flat roofs with multiple penetrations, fluorescent dye can be introduced at specific points on the roof and tracked where it appears below. This helps distinguish between a roofing problem and a wall or mechanical penetration issue.

All findings are documented with photos, moisture readings, and a simple map of affected areas. For many Chicago clients, especially those managing multiple properties, this documentation becomes part of their capital planning so they can prioritize which leaks are urgent and which can be scheduled with upcoming façade or roofing work.

Waterproofing Options for Roofs, Walls, and Openings

Once we know how water is moving through your building envelope, we can talk about practical waterproofing options. Commercial leak detection without a matching fix just leaves you with a report and the same problems. Clarity Mold Remediation Chicago focuses on solutions that fit the age, construction type, and budget of your building.

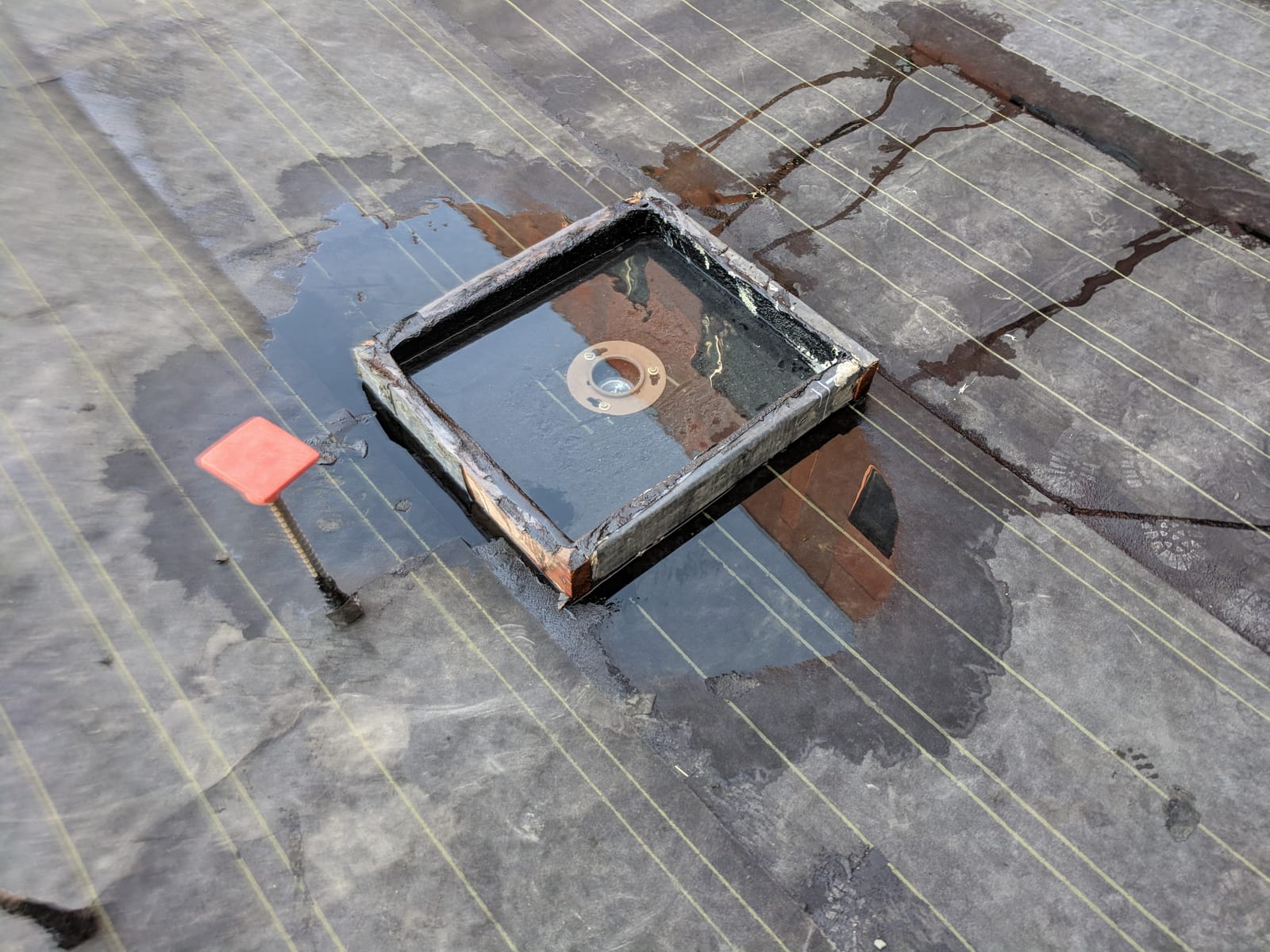

For flat and low-slope roofs, we often look at targeted repairs instead of full replacement. This might include reinforcing or replacing flashings around HVAC curbs and vents, installing new pitch pockets around conduits, sealing roof drains and scuppers, or adding liquid-applied waterproofing at roof-to-wall transitions. In some cases, a fluid-applied roof membrane can be installed over an existing system to create a continuous waterproof layer that ties into parapet walls.

For masonry walls and façades, we address both the exterior surface and the internal drainage path. Work can include grinding and repointing mortar joints, sealing cracks, treating porous brick or stone with breathable water repellents, and repairing through-wall flashing at shelf angles. In Chicago’s older brick buildings, we are careful to use materials that allow the wall to breathe so trapped moisture does not cause spalling in winter.

At windows, doors, and curtain wall systems, detailing matters more than product labels. We may remove failing sealants and backer rods and reinstall them with proper joint design, repair or add metal flashings, reset misaligned frames, or add pan flashing at sills where none was installed originally. On large storefronts and commercial glass systems, we pay close attention to weep holes and internal drainage so water that gets in can get back out without entering the building.

Below grade, such as at foundation walls, loading docks, or underground garages, solutions can range from crack injection with epoxy or polyurethane to new exterior waterproofing membranes, drainage mats, or interior negative-side coatings. In many downtown and near-lake structures, hydrostatic pressure is a factor, so we design repairs that relieve pressure instead of just trying to block it.

Before any work starts, we walk you through which materials we recommend, why they fit your building type, and what kind of lifespan you can realistically expect. Our goal is to solve the current leak without creating a new moisture or mold issue somewhere else in the building.

Cost Factors and What Drives Your Budget

The cost of building envelope waterproofing and commercial leak detection in Chicago can vary a lot from building to building. Clarity Mold Remediation Chicago is transparent about what drives your budget so you can make informed decisions.

Access is often the first factor. High-rise façades may require swing stages, boom lifts, or rope access, which adds to the cost and planning. Low-rise industrial roofs with easy ladder access are simpler and less expensive to investigate and repair. Tight alleys, busy sidewalks, and CTA-adjacent locations can also affect how we stage equipment and when we can safely perform water testing.

Construction type is the next major driver. A simple single-ply roof with a few penetrations is less complex than a multi-layer built-up roof with overburden, pavers, or green roof systems. Similarly, a straightforward brick wall is easier to diagnose than a complex curtain wall with integrated metal panels and multiple sealant joints. The more layers and transitions your envelope has, the more time and specialized materials are usually required.

Scope of damage matters too. If our leak detection shows localized moisture with dry surrounding areas, targeted repairs are often enough. However, if we find widespread wet insulation, deteriorated sheathing, or mold in wall cavities, you may be looking at phased remediation and envelope upgrades. In those cases, we help you separate urgent health and safety items from work that can be scheduled later as part of capital improvements.

Materials and warranty options also influence cost. Higher-performance sealants, fluid-applied membranes, and masonry coatings with longer service lives cost more up front but often reduce call-backs. We give you options, for example, a standard repair with a basic workmanship warranty versus a more robust system that can be warranted by the manufacturer for a longer period.

Finally, coordination can affect pricing. If we can align our work with your roofer, façade contractor, or general contractor, staging becomes more efficient and costs often come down. We are used to working on active sites in Chicago and can schedule leak diagnostics during off-hours or weekends when it makes sense for your tenants or operations.

Why Work With Clarity Mold Remediation Chicago

Most firms can patch a visible crack or reseal a window. The difference with Clarity Mold Remediation Chicago is that our commercial leak detection work is tied directly to long-term moisture control and indoor air quality. Because we are also mold remediation specialists, our team is trained to think about what is happening inside walls, ceilings, and mechanical chases, not just the outside surface where water enters.

Our technicians are familiar with Chicago building types: brick two-flats converted to offices, older warehouses turned into creative spaces, concrete high-rises, and modern curtain wall buildings along the river and near the lake. Each type has its own leak patterns. For example, loft conversions often leak at former loading dock infills and new window cut-ins, while 1970s office towers tend to leak at spandrel panels and aging window gaskets.

When we complete diagnostics, you receive clear recommendations prioritized by risk. That usually includes: items that must be addressed immediately to stop active leaks, items that should be planned within the next budget cycle, and items that can be monitored. If we discover mold or significant concealed moisture, we explain the remediation options, containment needs, and how to phase that work so your building can keep operating.

We also focus on communication. During testing, we keep facility managers updated in real time about what we are seeing and what it likely means. After work is complete, we often schedule follow-up inspections after major storms or freeze-thaw periods so we can confirm that repairs are performing as intended.

For Chicago owners, managers, and engineers, the goal is simple: a dry, durable building envelope that does not surprise you every time it rains. Clarity Mold Remediation Chicago helps you get there by combining precise commercial leak detection with practical waterproofing and a clear plan for preventing moisture and mold problems over the long term.
